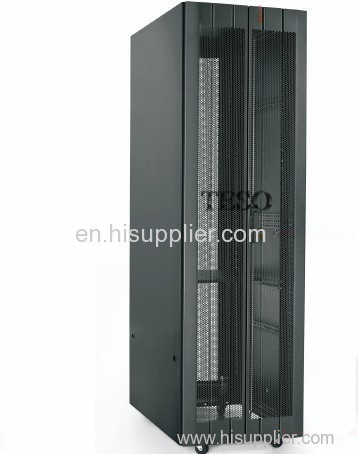

Product Description:

＊Frame is built up by double pipes profile and appropriative 3 tees joint ,optional disassembled and welded construction .

＊Solid structure and static loading achieves to 1500kgs.

＊High density vented hole front &rear door, meeting the ventilation requirements not less than the door space's 75%.Optional international fashion color of tempered glass for the front door .

＊The side door can be installed and uninstalled quickly which make the working conveniently .And the 2 or 3 sections side door optional .

＊The cabinet can be installed castor and adjustable feet simultaneously which make the moving and fixing easily .

＊The front door's open direction can be adjusted and the top cable entry hole with the rubber cover .

＊Mounting profile's depth could be adjusted. It could be installed all standard server.

＊Comfortable handle with safe lock and rear door's 3-point handle lock system enlarges the security. Lock with spring handle and please rotate the handle for lock opening .

＊The front and real door angle can open 130℃

＊We can manufacture the cabinet according to the customer special requirements also .

Standard:

Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41494;PART1,DIN41494;PART7,GB/T3047.2-92, ETSI standard.

Material:

SPCC high grade cold rolled steel

Thickness:

Mounting profile :2.0mm,others :1.2-1.5mm

Loading capacity :

Static Loading :1500kgs.

Surface painting :

Degrease ,acid pickling ,rust prevention and Parkerizing ,pure water cleaning ,static electricity plastic painting

Degree of protection :

IP20.

Body Color:

RAL7035,RAL9004,etc.
